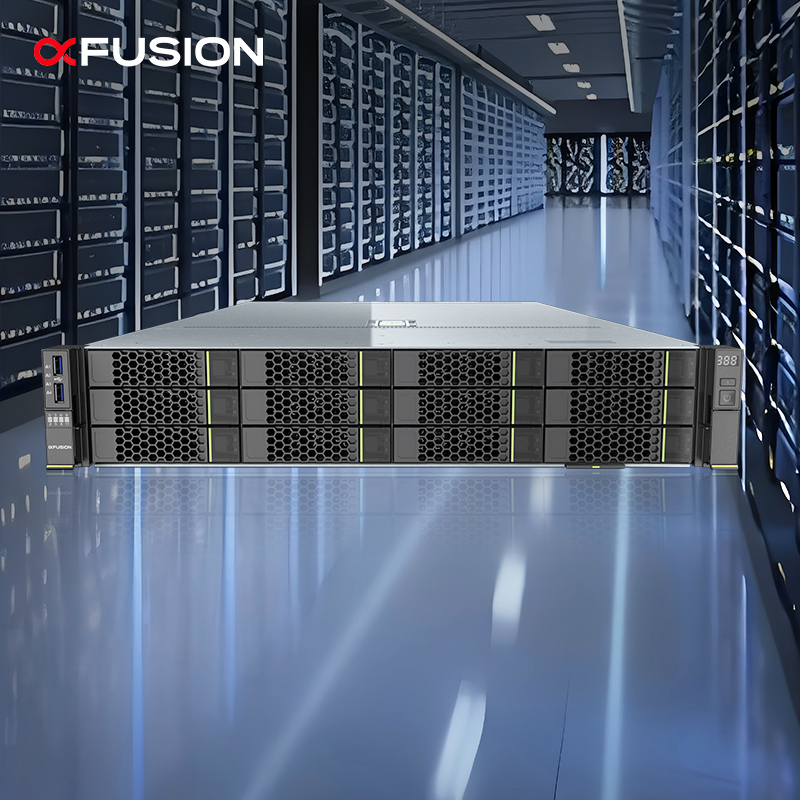

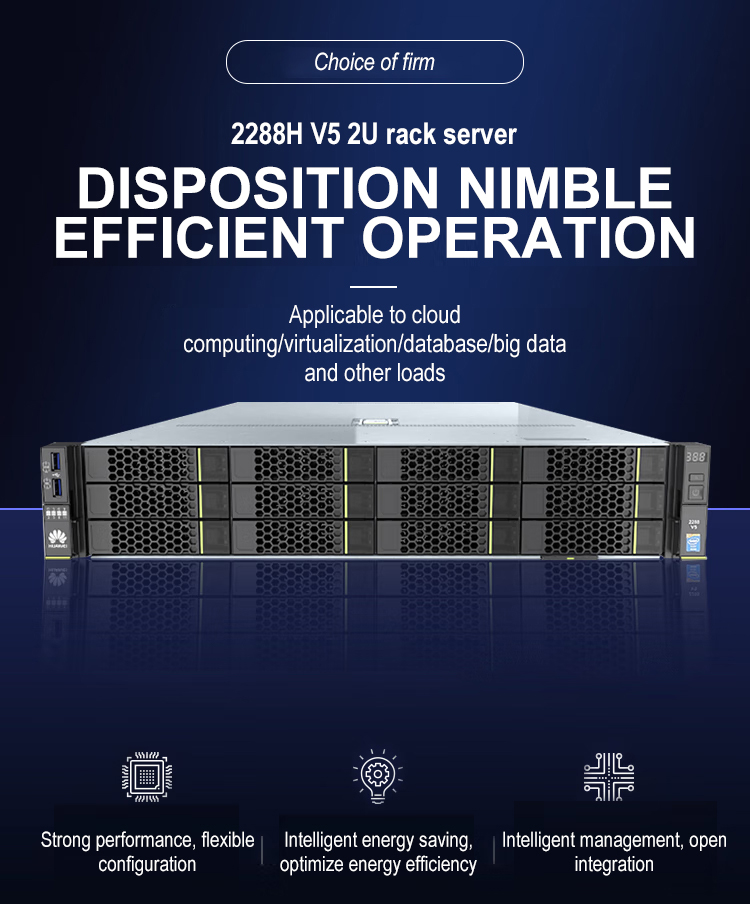

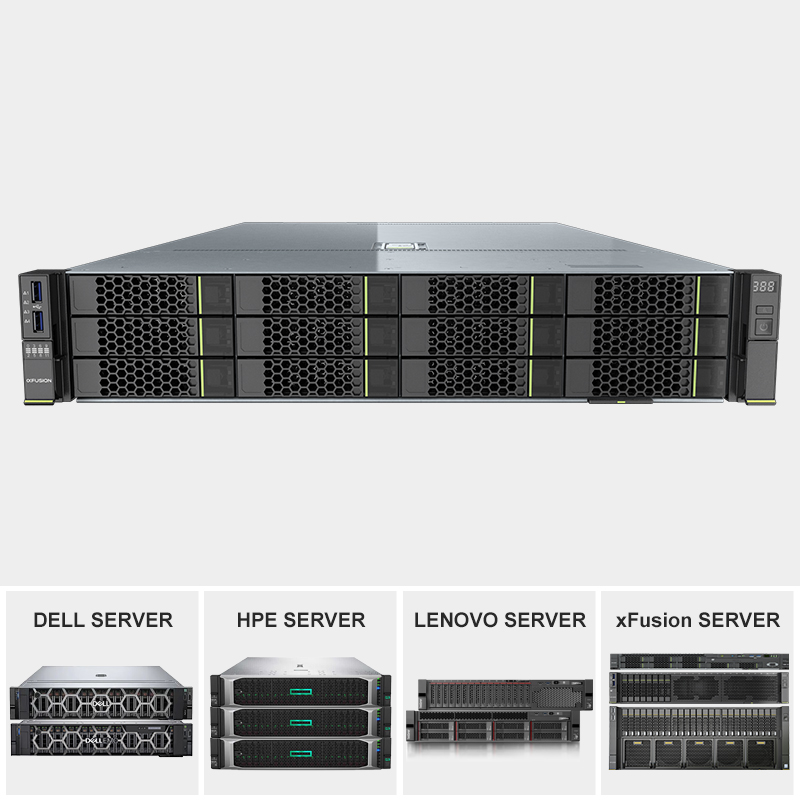

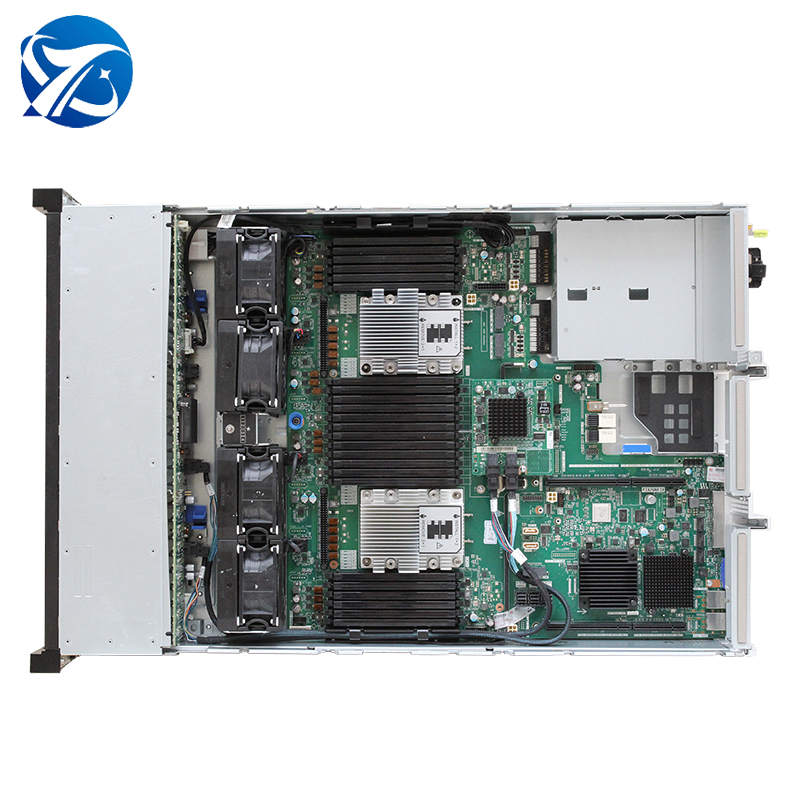

The FusionServer 2288H V5 is a 2U 2-socket rack server with flexible configurations, which can be widely used for cloud computing, virtualization, database, and big data workloads. The 2288H V5 can be configured with 2-socket Intel® Xeon® Scalable processors, 24 ports of DDR4 memory, 10 PCIe expansion slots, and supports large-capacity local storage resources. It integrates patented technologies such as DEMT, intelligent power consumption management, FDM intelligent fault management, and optional FusionDirector full lifecycle management software, which can effectively reduce operations cost, improve return on investment.
| System Specifications | |
|---|---|
| Server Model | FusionServer 2288H V5 |
| Form Factor | 2U, 2-socket rack server |
| Processors |
1/2 x 1st Gen Intel® Xeon® Scalable processors 3100/4100/5100/6100/8100 series, up to 205W 1/2 x 2nd Gen Intel® Xeon® Scalable processors 3200/4200/5200/6200/8200 series, up to 205W |
| Local Storage |

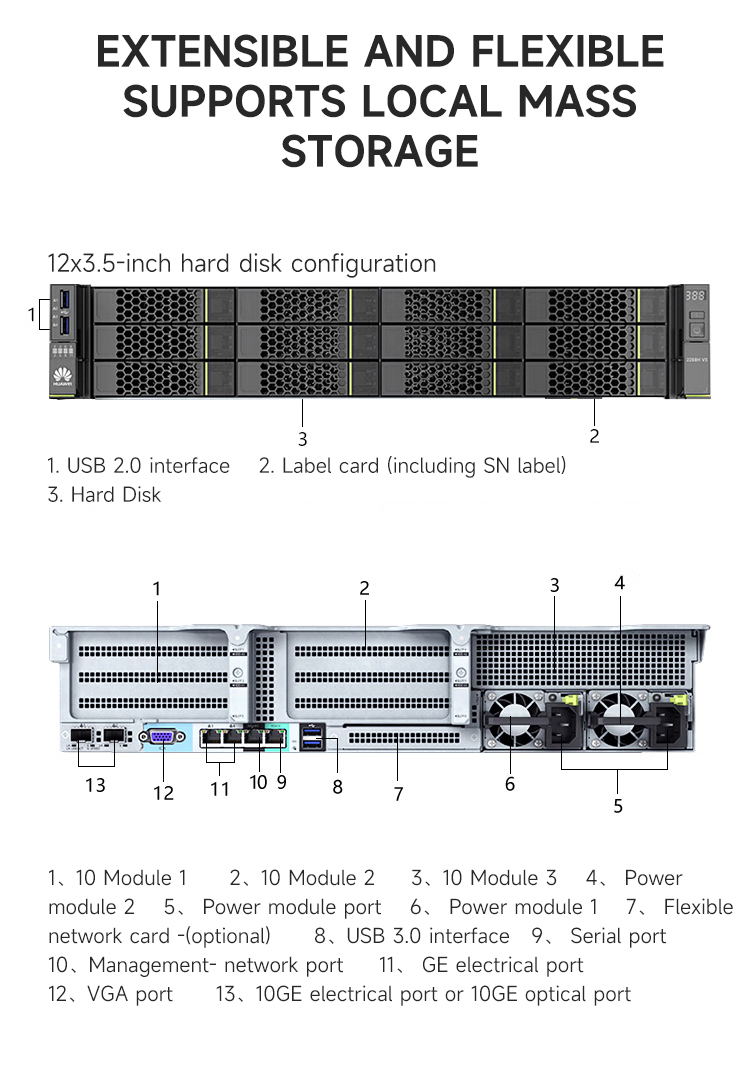

Supports hot-swappable hard disk configurations: • Configurable with 8/20/24/25/31 x 2.5-inch SAS/SATA/SSD hard drives • Configurable with 12/16/20 x 3.5-inch SAS/SATA hard drives • Configurable with 4/8/12/24/28 NVMe SSD hard drives • Dual M.2 SSDs (Flash storage support) |
| RAID Support | Supports RAID 0, 1, 10, 1E, 5, 50, 6, 60, etc. Supports Cache supercapacitor protection, RAID level migration, disk roaming, self-diagnosis, and web remote configuration. |
| Network Interface |
On-board NIC: 2 x 10GE ports and 2 x GE interfaces Flexible card options: 2 x GE, 4 x GE, 2 x 10 GE, 2 x 25 GE, or 1/2 x 56G FDR IB interface |
| PCIe Expansion | Up to 10 PCIe 3.0 expansion slots, including 1 dedicated PCIe slot for RAID cards and 1 flexible LOM card slot |
| Fan Modules | 4 hot-swappable fan modules with optional N+1 redundancy |
| Dimensions (H x W x D) |
• 3.5-inch hard disk chassis: 86.1mm x 447mm x 748mm • 2.5-inch hard disk chassis: 86.1mm x 447mm x 708mm |
| Power Supply Units |

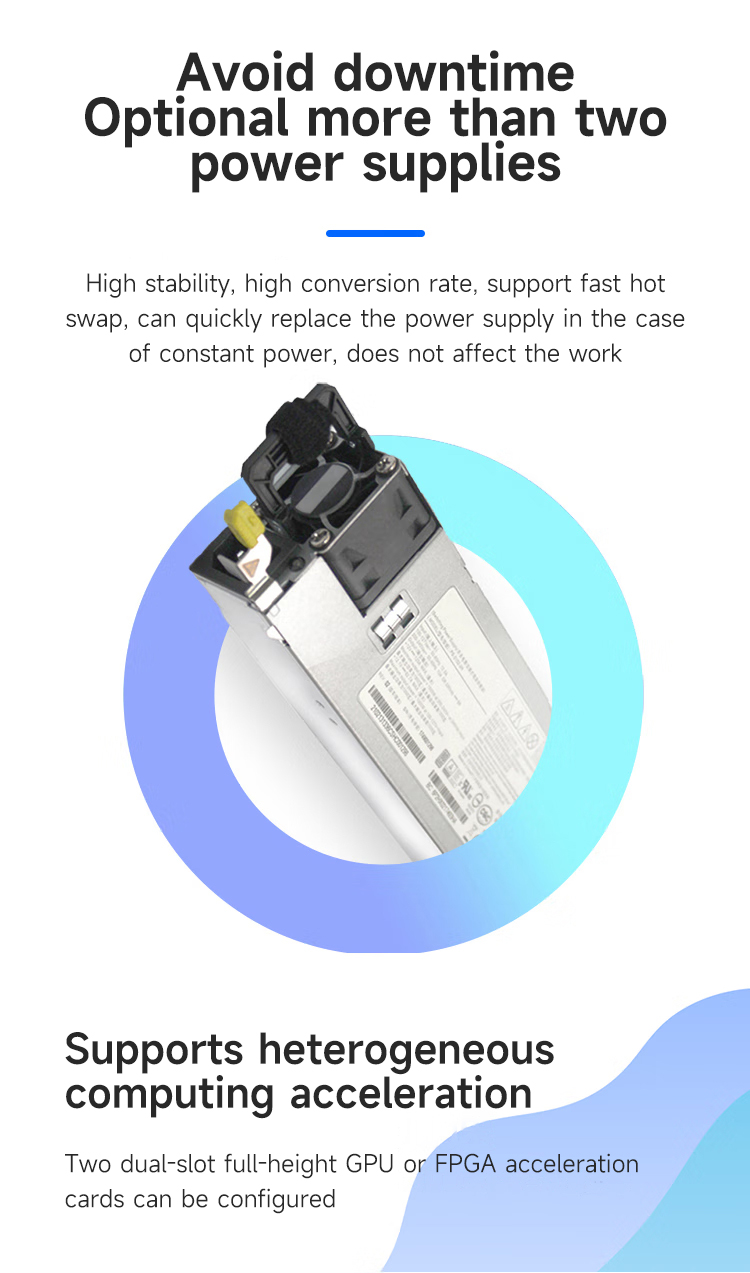

2 hot-swappable PSUs supporting 1+1 redundancy with configuration options: • 550W AC Platinum PSUs • 900W AC Platinum/Titanium PSUs • 1,500W AC Platinum PSUs • 1,500W 380V HVDC PSUs • 1,200W -48V to -60V DC PSUs |
